Introduction

In February 2022, cybersecurity researchers discovered a serious vulnerability in Insyde InsydeH2O’s AhciBusDxe driver impacting firmware using kernel versions 5.1 up to 5.5. Tracked as CVE-2022-24030, this bug allows a local attacker to corrupt System Management RAM (SMRAM) using fixed or guessable values. With a little know-how, attackers could escalate their privileges all the way up to SMM — one of the most powerful levels of code execution on a computer.

Let’s break down what’s going on, why it’s dangerous, how it can be exploited, and what you can do about it.

To get why this is scary, you have to know a couple basics

- SMM (System Management Mode): A super-privileged mode in x86 CPUs, used by firmware (UEFI/BIOS) for low-level and often security-sensitive tasks. Code running here is invisible and untouchable to the main OS.
- SMRAM (System Management RAM): A protected memory area for SMM code/data. Regular software *should not* be able to touch this — so any way to get arbitrary writes into SMRAM is a major security risk.

About InsydeH2O’s AhciBusDxe Driver

InsydeH2O is a popular UEFI firmware used by OEMs across many PC brands. The AhciBusDxe driver deals with the SATA AHCI controllers. A flaw in this driver’s SMM code logic opened a door for attackers.

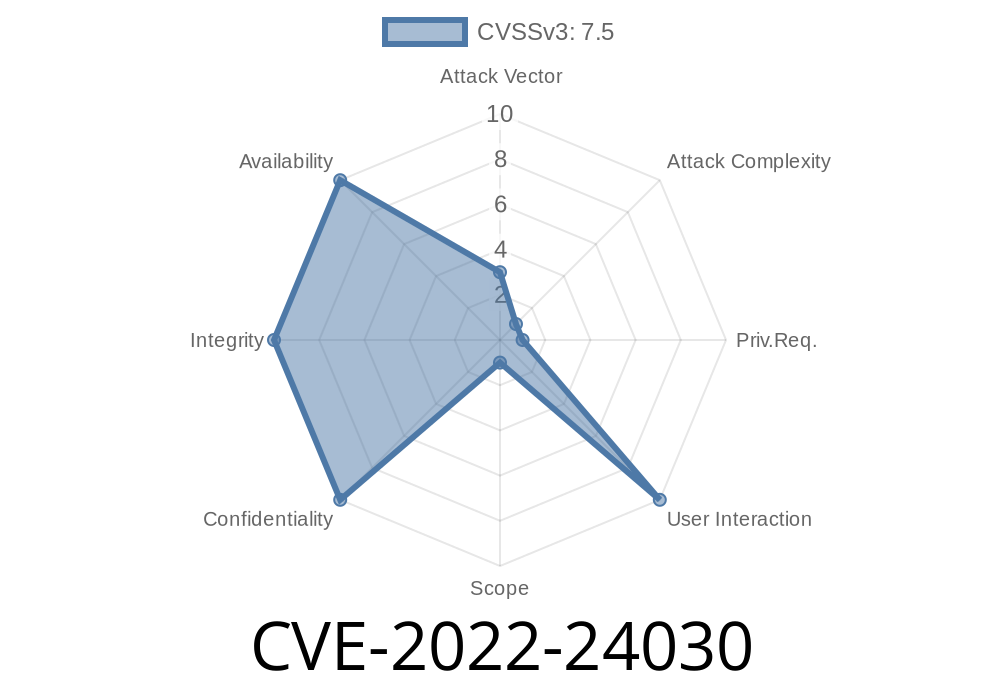

Details of CVE-2022-24030

Insyde’s implementation failed to properly validate certain memory operations when handling ACPI or MMIO requests in SMM. Specifically, the AhciBusDxe module accepted data from untrusted sources and later used it to write into SMRAM with fixed or guessable contents.

> Put simply: an attacker running code on the compromised machine can craft a request, trigger SMM, and overwrite memory in SMRAM with ‘predictable’ values. That’s direct SMRAM corruption from the OS level.

If you control what’s written to SMRAM, you can tamper with SMM handlers, hijack SMM code, or disable other firmware protections. This usually leads straight to permanent backdoors, rootkits, or invisible control — *even against fully-patched operating systems*.

Proof of Concept: How Attackers Might Exploit This

Assume an attacker has local code execution (normal user mode is enough). Here’s a high-level idea of an exploit path:

1. Craft Malicious Buffer: Prepare input data that, when processed by AhciBusDxe’s SMM handler, will target a sensitive offset in SMRAM.
2. Trigger SMI: Use normal ACPI/firmware triggers that cause an SMI (System Management Interrupt), invoking the flawed SMM module.
3. Corrupt SMRAM: On processing the crafted request, AhciBusDxe writes fixed or attacker-predictable values into the chosen SMRAM location.
4. Achieve Code/Privilege Escalation: By overwriting SMM handler data/code pointers, the attacker can redirect SMM flow, execute their own code in SMM context, and gain almost unlimited firmware-level control of the computer.

Example Exploit Snippet

Below is a simplified pseudocode snippet based on the structure of this vulnerability. (This is for educational use only!)

// This function triggers the vulnerable SMI handler with attacker-controlled data
void trigger_vuln_smi() {
    // Example crafted buffer to exploit predictable SMRAM write
    UINT8 malicious_buffer[256];
    memset(malicious_buffer, x41, sizeof(malicious_buffer)); // fill with 'A's

    // Call into the AHCI SMM interface, which is vulnerable
    // This might be done via a specific EFI variable or port I/O
    EFI_GUID AhciSmmGuid = { /* known GUID for the driver */ };
    UINTN DataSize = sizeof(malicious_buffer);

    // EFI SetVariable to trigger - simplified example
    SetVariable("AhciExploit", &AhciSmmGuid, EFI_VARIABLE_BOOTSERVICE_ACCESS, DataSize, malicious_buffer);

    // The SMM module processes this input and is tricked into writing into SMRAM
}

*Real SMM exploits require deep knowledge of the driver’s handler logic; the above just mimics the communication interface and buffer composition.*

How Was This Discovered?

The flaw was reported by firmware security researchers at Binarly in early 2022. Insyde assigned a patch and released an advisory:
- Official Insyde advisory: https://www.insyde.com/security-pledge/SA-2022022
- Binarly mention: https://www.zerodayinitiative.com/advisories/ZDI-22-271/

A search on https://www.cve.org/CVERecord?id=CVE-2022-24030 can give you the official details.

Mitigation and Fixes

- Update UEFI Firmware: If your computer’s OEM offers an update for InsydeH2O firmware, *install it immediately*.
- Restrict Privileges: Prevent users from running untrusted code locally. This attack can’t be pulled off over a network — the attacker needs to run code on the system.
- Monitor for SMM Triggers: Unusual SMM activity can sometimes be detected by advanced endpoint security tools.

Conclusion

*CVE-2022-24030* is another reminder why UEFI/firmware vulnerabilities are among the most dangerous. They bypass operating systems and can survive wipes or re-installs. This bug in InsydeH2O’s AhciBusDxe allowed direct, predictable writes to sensitive SMM memory, letting attackers escalate to the most privileged mode on a modern PC.

Always keep your firmware patched and watch for security advisories from your device manufacturer. For security pros, it’s a case study in why SMM input validation matters – and how even seemingly minor mistakes can open the door to catastrophic compromise.

Timeline

Published on: 02/03/2022 02:15:00 UTC
Last modified on: 03/09/2022 19:11:00 UTC
