_Chrome is the world’s most popular web browser, but even top software has bugs. Today, let’s break down a serious vulnerability that slipped into Chrome’s core graphics engine: an out-of-bounds read and write (CVE-2023-3598) in Google Chrome’s ANGLE component. We’ll dig into what happened, how it could be used in the wild, see some code, and help you actually understand how attackers could use a web page alone to take over a victim’s machine — all in plain English._

What Is CVE-2023-3598? (In Simple Terms)

CVE-2023-3598 is a security flaw discovered in Google Chrome, before version 114..5735.90. The weakness was found inside ANGLE, the graphics layer Chrome uses to talk with graphics hardware through OpenGL ES calls.

- What broke: _Memory safety_. An attacker could trick Chrome into reading or writing to memory outside of where it’s supposed to (an “out-of-bounds” attack).

How: By crafting a specific HTML page that triggers the buggy code in ANGLE.

- Impact: If successfully exploited, this bug could lead to heap corruption — allowing malicious code execution with the privileges of the user.

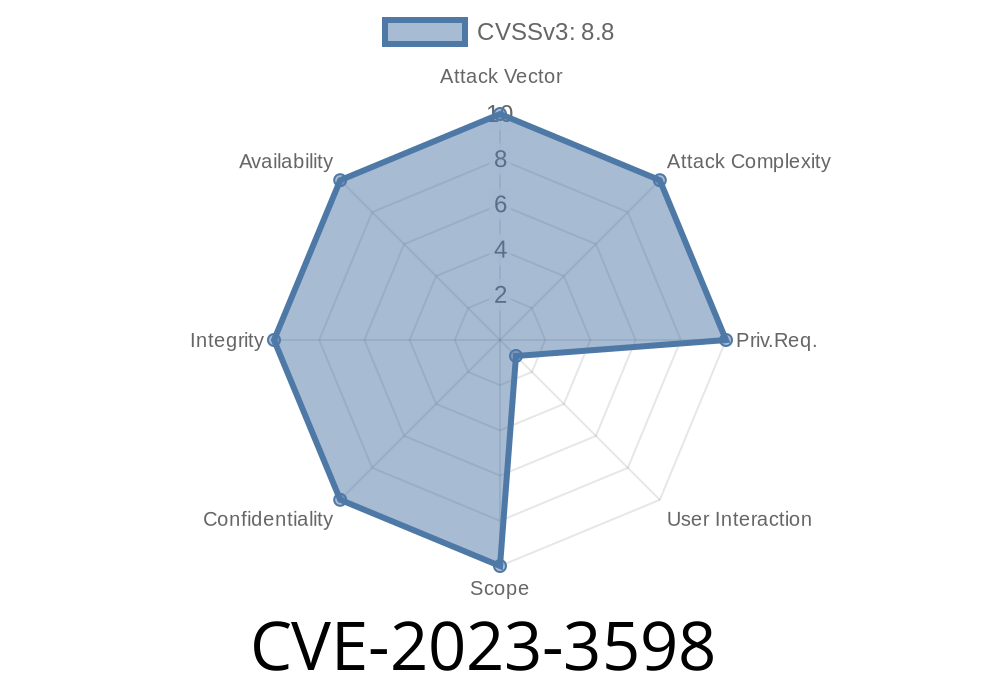

> Severity: High (as rated by the Chromium Project)

1. What Is ANGLE?

ANGLE (Almost Native Graphics Layer Engine) is a graphics translation layer — it lets Chrome and other apps efficiently use OpenGL ES commands regardless of the actual GPU. Almost any “fancy” website you open is running stuff through ANGLE!

### 2. What’s An Out-of-Bounds Read/Write?

Programs allocate memory for stuff they need (images, text, numbers, etc.). If the program reads or writes beyond the allocated space (“out of bounds”), it risks exposing data it shouldn’t — or corrupting memory, which can be twisted by hackers to run their code.

The Technical Details

Let’s get hands-on. The vulnerable code was inside ANGLE, usually triggered via advanced WebGL features. Attackers found a way to create an HTML page that, when opened, forces Chrome’s ANGLE code to miscalculate buffer sizes, leading to out-of-bounds memory access.

Typical Exploit Steps

1. Crafted HTML/JavaScript: A web page with innocent looking code.
2. Trigger out-of-bounds write/read: Usually by carefully initializing an oversized or undersized buffer in WebGL.

Example Vulnerable Pattern

Here’s a simplified and hypothetical code snippet similar to what was vulnerable (not the real Chrome code, but showing the general problem):

// Pseudocode - not actual Chrome source

void processBuffer(int* buffer, int length) {
    int localCopy[10];
    // Bad: does not check if length exceeds localCopy size!
    for (int i = ; i < length; i++) {
        localCopy[i] = buffer[i];
    }
    // ... further code working on localCopy ...
}

If length is greater than 10, this code writes beyond the localCopy array, causing “out-of-bounds” access — which is a major security bug.

Building a Proof-of-Concept (PoC)

Disclaimer: _Never run malicious code outside of secure testing environments!_

A PoC for this vulnerability can look like this, targeting the vulnerable ANGLE code via WebGL buffers and attributes:

<!-- Exploit HTML example (illustrative only) -->
<script>
  let gl = document.createElement('canvas').getContext('webgl');
  // Prepare a buffer that's bigger or smaller than Chrome expects
  let buffer = gl.createBuffer();
  gl.bindBuffer(gl.ARRAY_BUFFER, buffer);

  // Send more data than the buffer really is supposed to handle
  let overflowData = new Float32Array(100000); // Large, purposeful
  gl.bufferData(gl.ARRAY_BUFFER, overflowData, gl.STATIC_DRAW);

  // Set up attribute pointers that can go out-of-bounds
  gl.vertexAttribPointer(, 8, gl.FLOAT, false, , );
  gl.enableVertexAttribArray();

  // Trigger the rendering which will confuse ANGLE's buffer math
  gl.drawArrays(gl.TRIANGLE_STRIP, , 100000);
</script>

If exploited, this could corrupt heap memory, giving a determined attacker control.

Exploit Possibilities

- Remote code execution (RCE): Run attacker’s code on your computer, steal data, install malware.

References & Further Reading

- Google Chrome Release Notes 114..5735.90
- NVD entry for CVE-2023-3598
- Chromium Security Severity Ratings
- ANGLE Project
- Mitre CVE Record: CVE-2023-3598

In Closing

CVE-2023-3598 shows how even complex, hidden layers of software like ANGLE can be a target for attackers. All it takes is the right web page to open the door. Stay secure: keep your browser updated and be careful what you click!

If you want more deep dives into browser bugs (written in simple English!), let us know in the comments!
